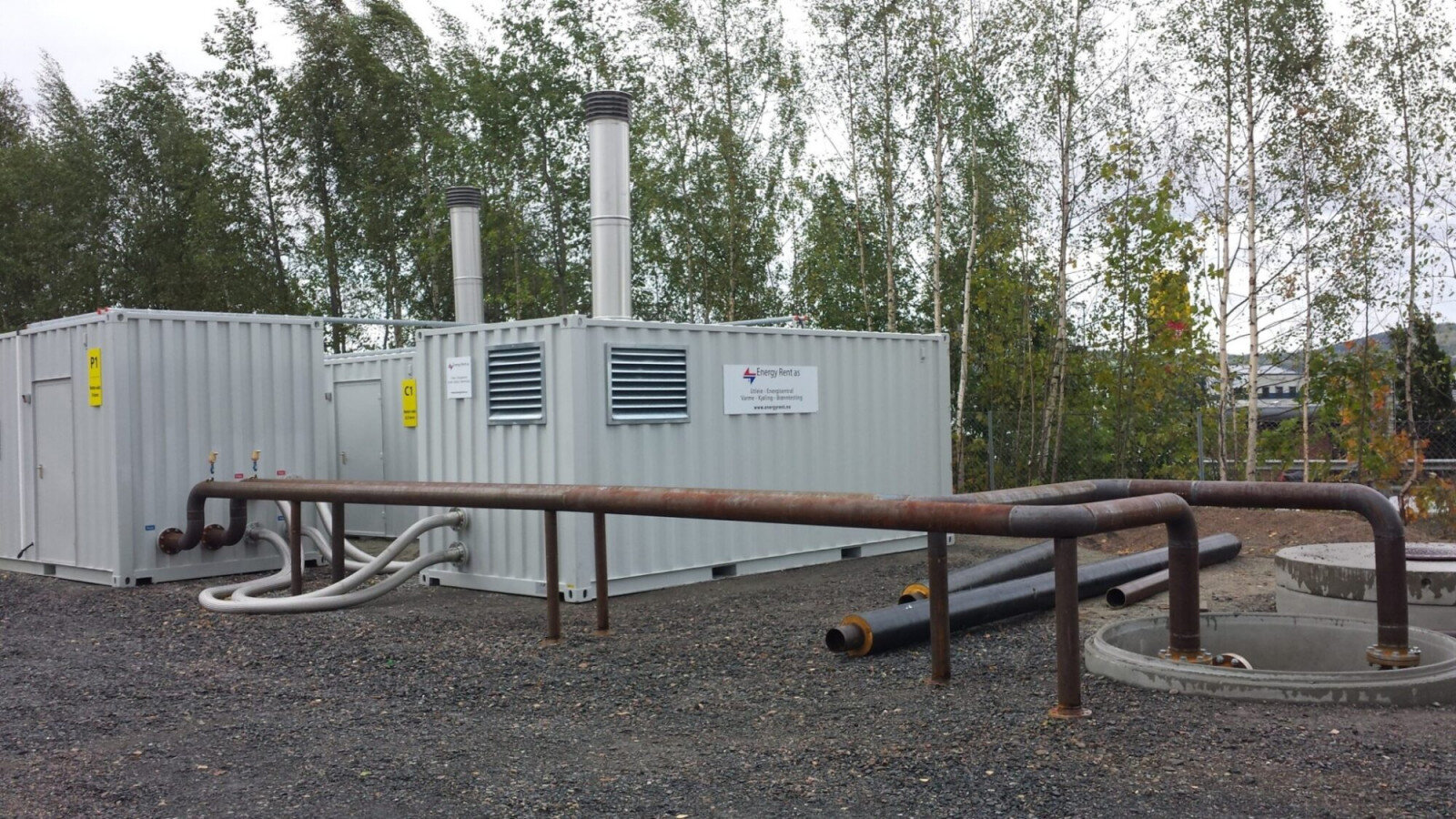

Mobile Heating Central HC 1500
Bio-Oil

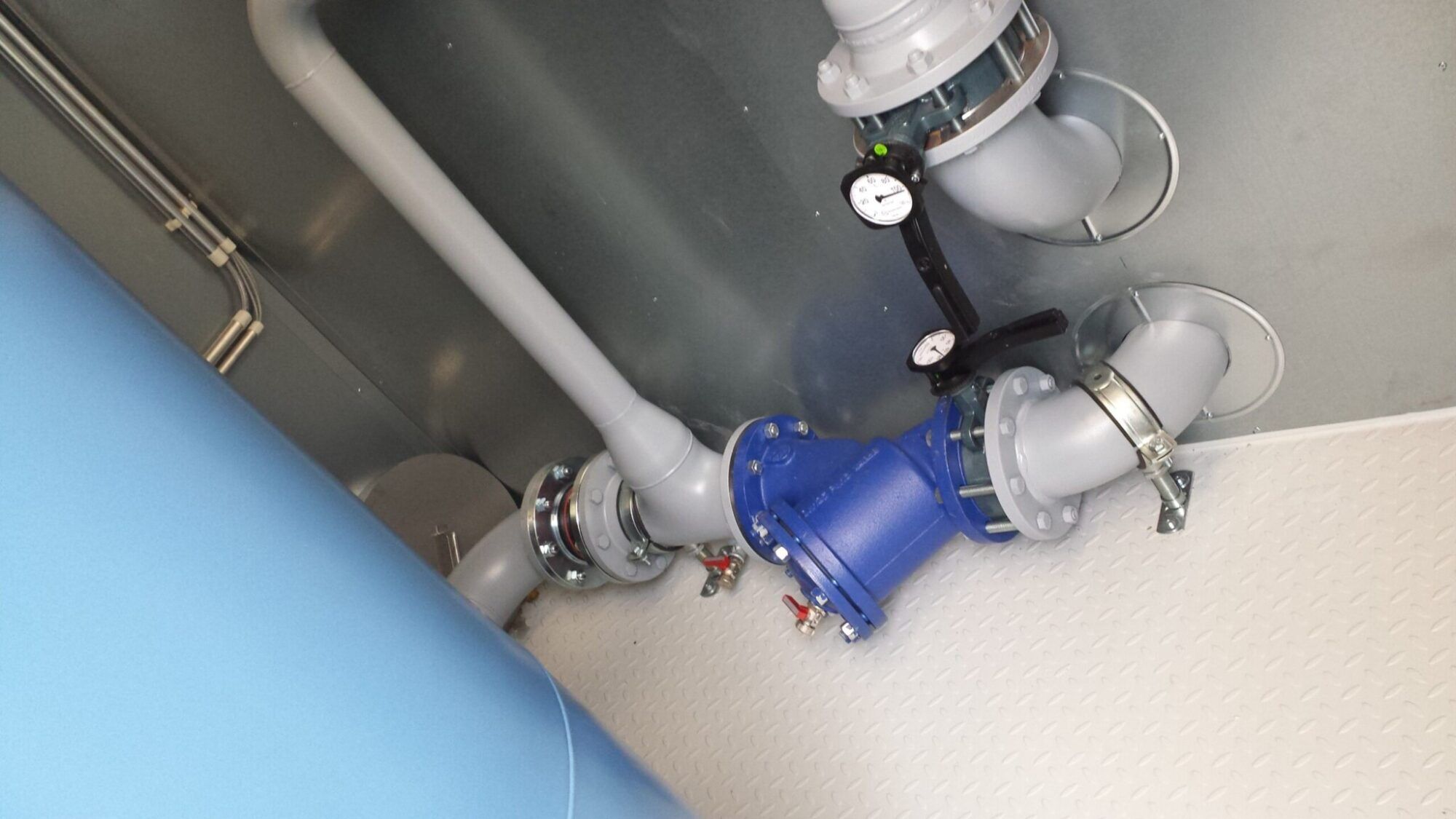

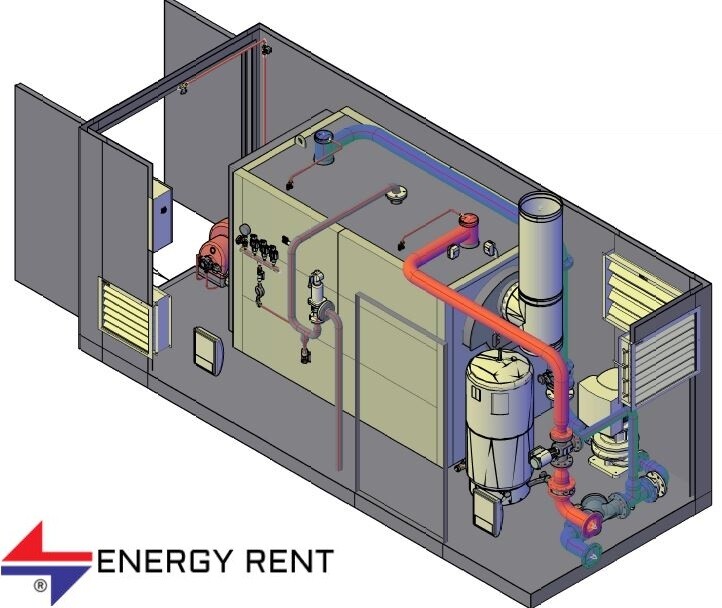

The HC1500 is built on an industrial boiler from the quality brand Viessmann. Furthermore, there is a 3-stage burner from Weishaupt, which, together with an integrated shunt valve, ensures an optimal return temperature. It is ready for immediate and independent use. The HC1500 contains a frequency-controlled pump, and expansion vessel, and built-in monitoring.
350 to 1500kW heating capacity
Heat 90/70°C
Compact design in 20 ft container
Flexible deployment options
Especially suitable for long-term rental
Optional GSM error message
Technical specifications
| Description | Unit | Value |
|---|---|---|
| Heat capacity | kW | 100 – 1500 |
| Dimensions L x B x H | mm | 6058 x 2438 x 2590 |
| Weight (empty) | kg | 8500 |
| Medium | °C | 90 / 70 |
| Safety valve | bar | 6 |
| Flow | m3/h | 65:27 mWS |
| Expansion | liter | 600 |
| Bio oil tank | type | External up to 20,000l |
| Fuel | type | Biooil or Oil |
| Frost protection | type | Yes |
| Remote control | type | Optional/Alarm |
| Electrical connection | CEE | 63A 5 poles / 400V |
| Pipe system | type | Stål |
| Connection | flange | DN125/PN16 |
